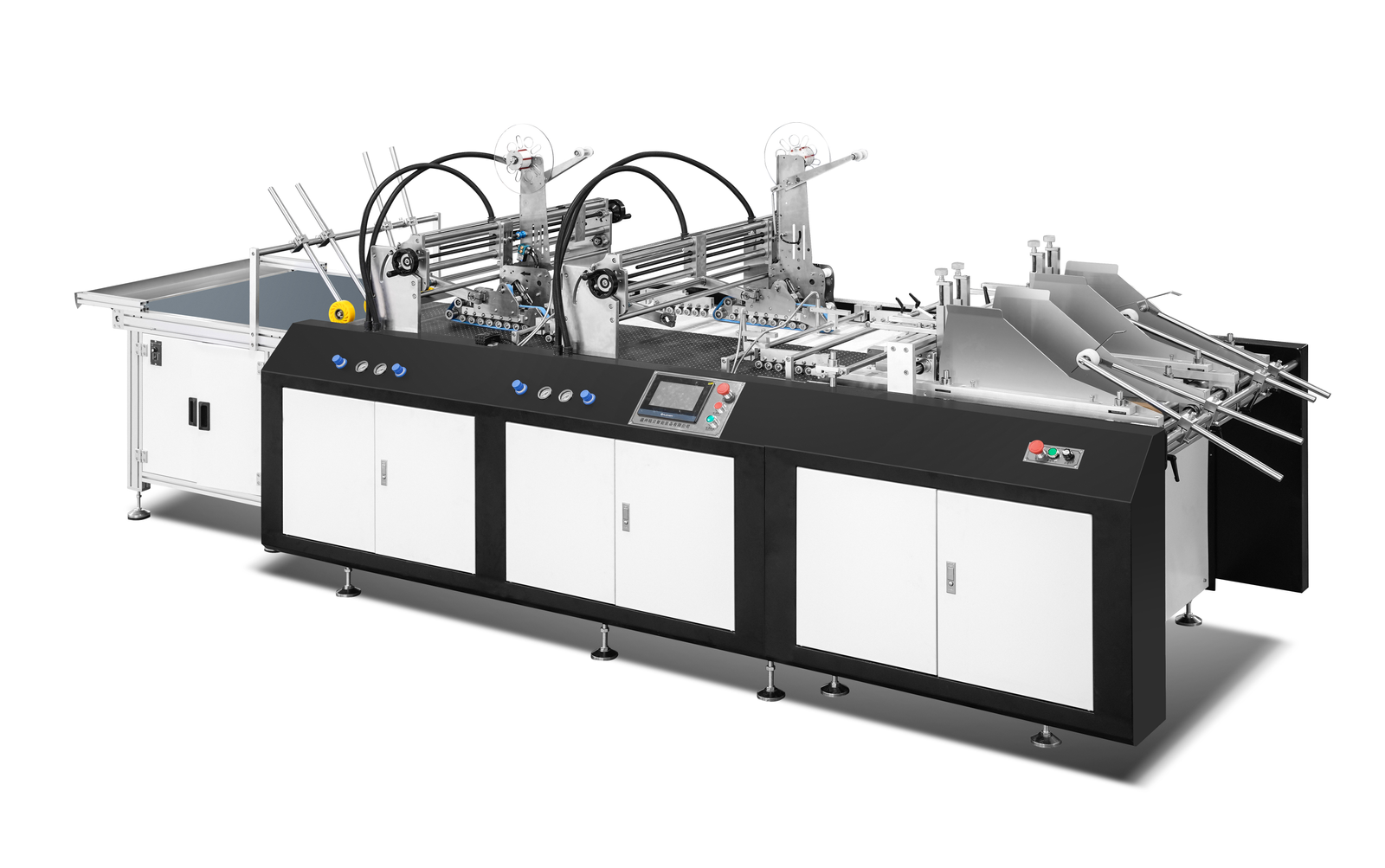

DT850/1200 fully automatic multi-head double-sided adhesive machine
Product Details
Equipment Characteristics
1The automatic feeding mechanism adopts the friction feeding
method of the folder gluer to ensure smooth feeding.
- Optical fiber sensor and servo positioning, accurate
positioning.
- The bonding part adopts a new type of bonding mechanism,
which has efficient bonding performance.
- PLC control, man-machine interface, parameter touch screen
setting, fitting length adopts man-machine dialogue, and the
length can be set arbitrarily.
- The delivery section adopts the continuous accumulation box
method.
Equipment parameters
| Material | 超过200g/m² 的硬纸板、塑料、E-、B-、C-/ Over 200g/m² cardboard/ corrugated board/E-B-C-wave | DT-1200 |
| Min open blank | 140×100 mm | 140×100mm |
| Max open blank | 850×850 mm | 1200×850mm |
| Working width | 850 mm | 1050mm |
| Conveyor Speed | 80m/min | 90m/min |
| Tape roll width | 5-35mm, 10-60mm | 5-35mm, 10-60mm |
| Precision | ±1.5mm | ±1.5mm |
| Needed air supply | Min. 6 bar | Min. 6 bar |
| Power required | 4KW (220V AC 3φ 50HZ) | 4KW (220V AC 3φ 50HZ) |
| Weight | 1200KG | 1400KG |
| Machine size(L×X×H) | 4500×1400×1400mm | 4500×1800×1400mm |
MAIN PERFORMANCE
Feeding mechanism
New design concept with high friction
belt feeding to ensure smooth paper
output.
30 seconds quick change
double sided tape
The adhesive head is rotated 45° by
one key, and it is more convenient to
change the adhesive.
Straight-out Fish Scale Take-up
Adopt independent imported belt for
fish scale type paper collection, neat
transportation, convenient for workers to
collect yardage (optional points function)
change the adhesive.
