MR450B triangular semi-automatic double-sided adhesive machine
Product Details
Equipment parameters
| Model | Maximum size of side piece | Minimum size of side sheet | Maximum size of double-sided adhesive | Minimum size of double-sided adhesive | Production speed | Power | Voltage | Machine size | Machine weight |
| MR-450B | 800*200mm | 100*40mm | 170*170mm | 30*30mm | 40-70pcs/min | 2kw | AC 220V | 2200*900*1600mm | 400kg |
Double-sided adhesive head parameters
| Double-sided adhesive size | Maximum size of load | Inside diameter of film roll | Speed | Minimum distance between ends | Glue precision | Weight | Overall Dimension | Rated power |
| 5*35mm | ≤430mm | 76mm | 40-90M/min | 10mm | ±1mm | 7kg | 760*240*60mm | 24V/20w |
Servo Driven
Fiber optic positioning for
precise product gluin
New double-sided
adhesive header
40-90 meters/minute,
efficient gluing
Super suction system
750W suction motor,
universal for thick and thin
Paper

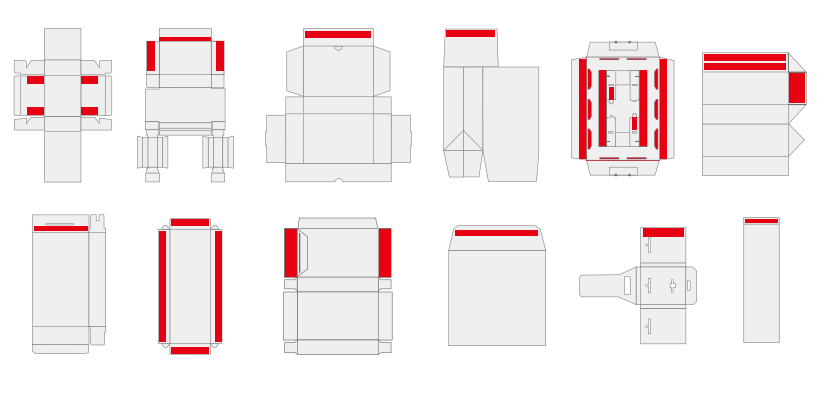

AVAILABLE IN BOX/BAG
Inquiry:
MAIN PERFORMANCE
