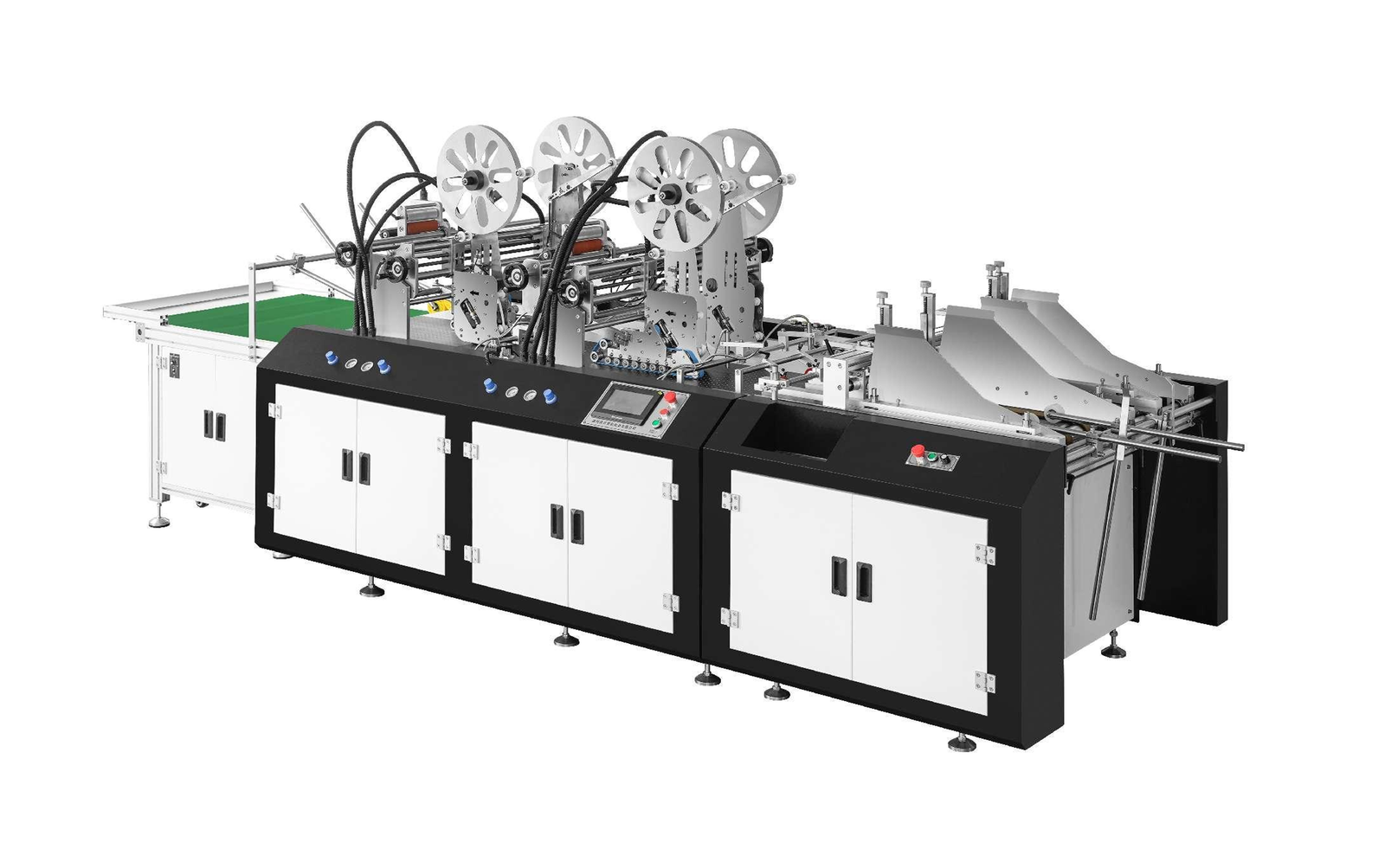

MR1350/1650 fully automatic multi-head double-sided adhesive machine
Product Details
Equipment Characteristics
- The automatic feeding mechanism adopts the friction feeding
method of the folder gluer to ensure smooth feeding.
- Optical fiber sensor and servo positioning, accurate
positioning.
- The bonding part adopts a new type of bonding mechanism,
which has efficient bonding performance.
- PLC control, man-machine interface, parameter touch screen
setting, fitting length adopts man-machine dialogue, and the
length can be set arbitrarily.
- The delivery section adopts the continuous accumulation box
method.
Equipment parameters
| Model | CS-1350 | CS-1650 |
| Material | Over 250g/m² cardboard/ corrugated board/E-B-C-wave | |
| Min. open blank | 250×250mm | 250×250mm |
| Max. open blank | 1350×850mm | 1650×1250mm |
| Working width | 600mm | 600mm |
| Conveyor Speed | 90m/min | 90m/min |
| Tape roll width | 5-35mm 10-60mm | 5-35mm 10-60mm |
| Sticking style | 纵向贴胶/Vertical sticking | 纵向贴胶/Vertical sticking |
| Needed air supply | Min. 6 bar | Min. 6 bar |
| Power required | 3.5kw (220V AC 3φ 50HZ) | 3.5kw (220V AC 3φ 50HZ) |
| Weight | 1500kg | 1700kg |
| Machine size(L×X×H) | 4500×2450×1200mm | 4500×2750×1400mm |
Servo Driven
Fiber optic positioning for
precise product gluing
Super suction system
750W suction motor,
universal for thick and thin
paper
